EasyQCL-1000
The EasyQCL-1000 system is a turnkey terahertz Quantum Cascade Laser source, offering average power levels of up to 30mW* thanks to the more powerful cryocooler. The system is configurable with a wide range of QCLs emitting at discrete frequencies between 1.9 and 5 THz in CW/pulsed and single/multimode. Multiple QCLs can be mounted in the same cooler (Multi-QCL option) and is available on request.* At select frequencies, see Technical Data.
The EasyQCL-1000 system Includes
The EasyQCL-1000 system Includes
• QCL laser diode module
• Closed cycle single-stage Pulse Tube Cryocooler
• QCL drive electronics capable of pulsed or continuous-wave operation (0.4 μs up to DC)
• All necessary accessories for turnkey operation
The EasyQCL-1000 system is designed for ease of use:
• Cryogen-free – laser diode cooling is by a closed cycle refrigeration
• No optical alignment
• Cooler is maintenance-free
• The Main system is tabletop compact and operates on 240 V single-phase power source
A variety of user-interchangeable QCL modules are available
• 10’s of Milli-watt average power levels
• Continuous wave operation available at select frequencies
• Choice of center frequencies ranging from 1.9 to 5 THz
• Multimode operation
• Single-mode DFB output at select frequencies
The EasyQCL-100 is available with a Multi-QCL option, allowing up to 4 QCL devices to be placed in the system. The Multi-QCL option provides all the necessary equipment to automatically switch devices
EasyQCL-100
The EasyQCL-100 system is a turnkey source of terahertz radiation that uses an integral Stirling Cycle cooler for cryogen-free and alignment-free operation. A range of user interchangeable multimode QCL modules is available providing milliwatt power levels at frequencies between 1.8 to 5 THz. The EasyQCL-100 now has a multi-QCL option, which integrates up to four, automatically switched QCLs in the same system.The EasyQCL-100 system Includes
The EasyQCL-100 system Includes
• QCL laser diode module
• Closed cycle Stirling Cryocooler
• QCL drive electronics capable of pulsed or continuous-wave operation (0.4 μs up to DC)
• All necessary accessories for turnkey operation
The EasyQCL-100 system is designed for ease of use:
• Cryogen-free – laser diode cooling is by a closed cycle refrigeration
• No optical alignment
• Cooler is maintenance-free
• Laser bias is controlled by the front panel or computer (USB and Windows 10/11 compatible)
A variety of user-interchangeable QCL modules are available
• Milliwatt average power levels
• Continuous wave operation available at select frequencies
• Choice of center frequencies ranging from 1.8 to 5 THz
• Multimode operation
• Single-mode DFB devices available at 2/3/3.8/4.7 THz.
The EasyQCL-100 is available with a Multi-QCL option allowing up to 4 QCL devices to be placed in the system. The Multi-QCL option provides all the necessary equipment to automatically switch devices
EasyQCL-50
The EasyQCL-50 system is compact (<5 kg) , turnkey source of terahertz radiation. It houses select Terahertz Quantum Cascade Laser sources producing up to milliwatt average power levels in a Stirling Cycle Cooler. The EasyQCL-50 system Includes
The EasyQCL-50 system Includes
• QCL laser diode module
• Closed cycle Stirling Cryocooler
• QCL drive electronics capable of pulsed or continuous-wave operation (0.4 μs up to DC)
• All necessary accessories for turnkey operation
The EasyQCL-50 system is designed for ease of use:
• Cryogen-free – laser diode cooling is by a closed cycle refrigeration
• No optical alignment
• Cooler is maintenance-free
• Laser bias is controlled by the front panel or computer (USB and Windows 10/11 compatible)
A variety of user-interchangeable QCL modules are available
• Pulse operation at select frequencies (2.7-2.9 and 3.1-3.3THz)
• Multimode operation
Applications
• Milliwatt Local-Oscillator for Heterodyne Receivers
• Gas Spectroscopy Source.
• Noise and responsivity Characterization of detectors
• THz radiation source for AFM system or SNOM microscope.

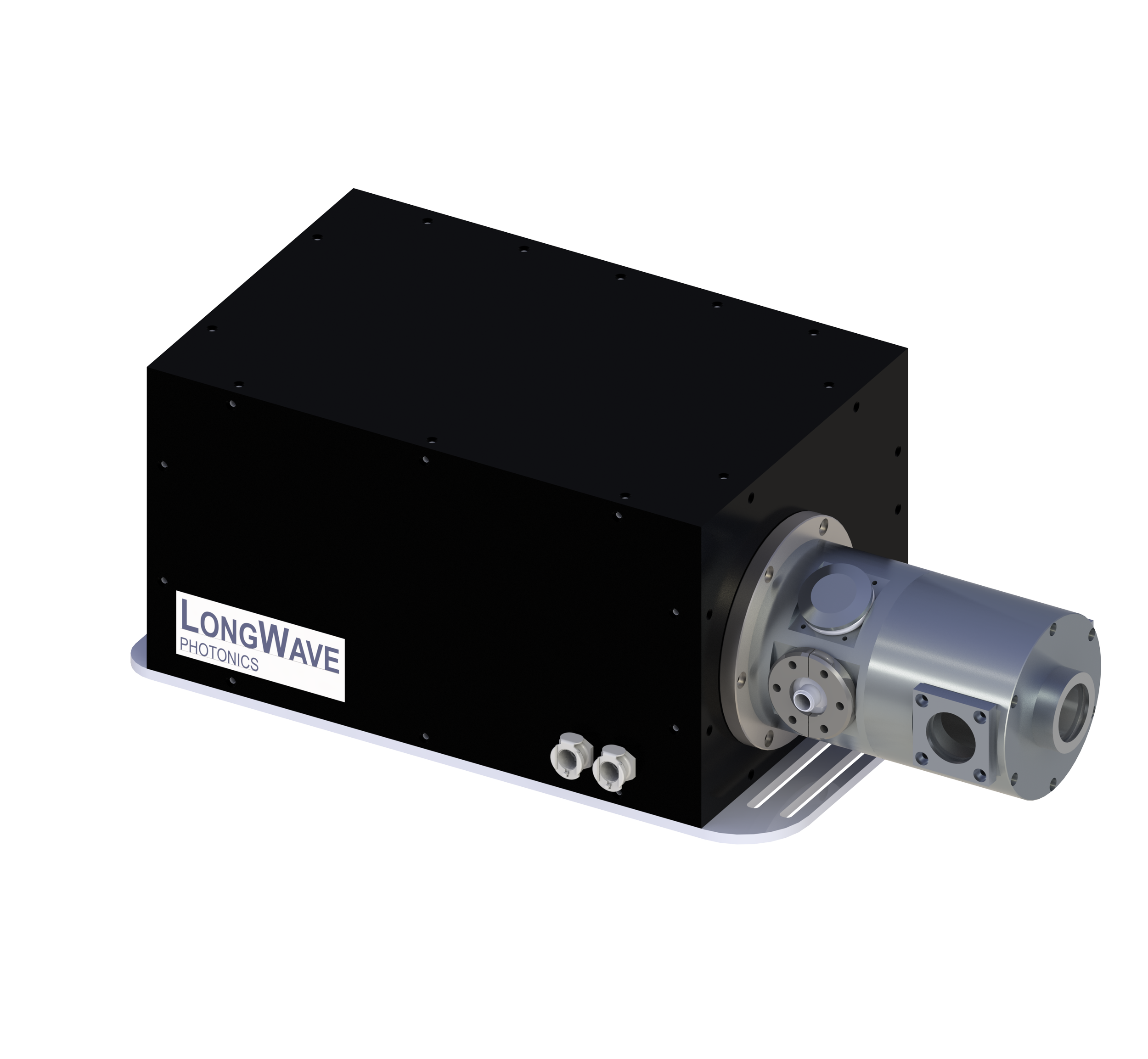

EasyQCL-200
The EasyQCL-200 system is an ultra-low vibration cryogen-free platform configurable for use with a variety of Terahertz Quantum Cascade Lasers. The system uses passive and active vibration damping to achieve vibration levels of <100 nm (RMS). A range of user interchangeable QCLs is available: electronically controlled tunable QCLs (single devices spanning 1.5 to 4.5 THz), multimode Fabry-Perot QCLs, and single-frequency DFB QCLs.The EasyQCL-200 system Includes
The EasyQCL-200 system Includes
• QCL laser diode module, upgradeable to a DFB or Electronically controlled tunable QCL
• Active/Vibration compensated Stirling Cycle Cooler
• QCL drive electronics capable of pulsed or continuous-wave operation (<0.4 μs up to DC)
• Optionally configurable:
• 40 pin/dual SMA electrical feed-throughs
• 3 or 5 optical windows
The EasyQCL-200 system is designed for ease of use:
• Cryogen-free – laser diode cooling is by a closed cycle refrigeration
• No optical alignment
• Maintenance-free
• Laser bias is controlled by the front panel or computer (USB and Windows 7/10 compatible)
• Complete package is tabletop compact, portable and operates on 120/240 V (5A)
A variety of user-interchangeable QCL modules are available
• Electronically controlled tunable QCLs spanning 1.5 to 4.5 THz
• Fabry-Perot devices with milliwatt average power levels
• Single-mode DFB devices available at 2/3/3.8/4.7 THz.
The Easy-200 is available with a Multi-QCL option, allowing up to 4 QCL devices to be placed in the system. The Multi-QCL option provides all the necessary equipment to automatically switch devices
